BLISS CLUTCH FRICTION DISC
MODEL AK, CKU, R, SU CLUTCHES
Custom sizes can be made to order.
I'd like to
request a quote.
| Part No. |
OEM Part Nos. |
A |
B |
C |
Pin Dia. |
| BLS-12 |
0811-2-1727
3684-B-4202 |
15.375 |
14.375 |
9.125 |
1.25 |
| BLS-32 |
0811-1-0525
3684-B-4204 |
19.25 |
17.375 |
11.75 |
1.25 |
| BLS-62 |
3491-C-3289
3684-B-4213 |
23.25 |
21.375 |
12.625 |
1.75 |
| BLS-122 |
3491-C-3292
3684-B-4220 |
27.5 |
25.125 |
15.625 |
1.75 |
| BLS-252 |
3691-C-4220
3684-B-4220 |
27.5 |
25.125 |
15.625 |
1.75 |
| BLS-651 |
0801-1-7040
3684-B-4290 |
27.5 |
25.125 |
15.625 |
2 |
| BLS-372 |
3491-C-3281
3684-B-4230 |
33 |
30.125 |
19.5 |
2.5 |
| BLS-552 |
0811-1-0477
0042-2-0497 |
38.25 |
34.625 |
21.875 |
2.5 |
| BLS-2001 |
0043-1-0565
3684-B-4291 |
38.25 |
34.625 |
21.875 |
3 |
| BLS-922 |
3491-C-3290
0043-2-0395 |
45.75 |
41.25 |
28.5 |
3 |
| BLS-350 |
0811-1-1755
3684-B-4292 |
46.25 |
41.25 |
28.5 |
3.5 |
BLISS LINING PLATES
MODEL CA, CAC, AK, FK, DK, CKU, R, SU CLUTCHES
I'd like to
request a quote.
| Part No. |
OEM Part No. |
A |
B |
Thickness |
| BLS-093 |
0042-1-0093 |
13.75 |
2.5
|
0.355 |
| BLS-136 |
0042-1-0136 |
13.5 |
4 |
0.355 |
| BLS-138 |
0042-1-0138 |
19.125 |
5.375 |
0.355 |
| BLS-139 |
0042-1-0139 |
16 |
4.75 |
0.355 |
| BLS-149 |
0042-1-0149 |
22.125 |
6.375 |
0.355 |
| BLS-244 |
0042-1-0244 |
26.5 |
7.375 |
0.385 |
| BLS-261 |
0042-1-0261 |
30.875 |
8.125 |
0.385 |
| BLS-508 |
0042-1-0508 |
16 |
4.75 |
0.295 |
| BLS-7144 |
3129-C-7144 |
10.75 |
2.4375 |
0.355 |
| BLS-132 |
0042-1-0132 |
10.75 |
2.75 |
0.355 |
BLISS LINING PLATES
MODEL C, TYPE K CLUTCH
I'd like to
request a quote.
| Part No. |
OEM Part No. |
A |
B |
| BLS-189 |
0042-1-0189 |
10.5 |
4
|
| BLS-134 |
0042-1-0134 |
13.25 |
4 |
| BLS-200 |
0042-1-0200 |
15 |
5.125 |
| BLS-370 |
0042-1-0370 |
18.25 |
6.2 |
BLISS FRICTION DISC BUSHINGS
BOLT IN STYLE (HARDENED)
MODEL CA, CAC, AK, FK, DK,
CKU, R, SU CLUTCHES
I'd like to
request a quote.
| Part No. |
A |
B |
| BLS-125 |
1.25 |
2.75 |
| BLS-175 |
1.75 |
3.75 |
| BLS-200 |
2 |
4.5 |
| BLS-250 |
2.5 |
5.25 |
| BLS-300 |
3 |
6 |
| BLS-350 |
3.5 |
6.437 |
| BLS-400 |
4 |
6.2 |
BLISS CLUTCH COVER GASKETS
I'd like to
request a quote.
| Part No. |
Press Size |
Clutch Size |
ID and OD |
Price Each |
| 0042-2-0054 |
C-22 |
12 CKU |
10 X 11.75 |
$ 15.00 |
| 0043-3-0071 |
C-35 |
32 CKU |
13 X 15.25 |
$ 25.00 |
| 0043-3-0072 |
C-45 & C-60 |
62 CKU |
16 X 18.75 |
$ 30.00 |
| 0043-2-0070 |
C-45 & C-60 |
122 CKU |
20 X 22.75 |
$ 40.00 |
| 0043-1-0236 |
C-60 & C-75 |
252 CKU |
21 X 23.5 |
$ 45.00 |
| 0043-2-0405 |
C-110 |
372 CKU |
23 X 26.5 |
$ 50.00 |
| 0043-2-0352 |
C-150 & C-200 |
552 CKU |
27 X 30.75 |
$ 60.00 |
| 0043-2-0374 |
C-200 & C-250 |
922 CKU OUTER |
34 X 37.5 |
$ 80.00 |
| 0043-2-0369 |
C-200 & C-250 |
5922 CKU INNER |
9 X 13 |
$ 15.00 |
| Part No. |
Clutch Size |
ID and OD |
Price Each |
| 0042-3-0490 Inner |
351 AK & 352 AK |
5.0 x 7.125 |
$ 15.00 |
| 0042-3-0491 Outer |
|
16.5 x 18.25 |
$ 35.00 |
| 0042-3-0511 Inner |
651 AK & 652 AK |
|
$ 15.00 |
| 0042-3-0432 Outer |
|
|
$ 40.00 |
| 0042-3-0560 Inner |
1201 AK & 1202 AK |
7.25 x 9.75 |
$ 15.00 |
| 0042-2-0242 Outer |
|
24.5 x 26.75 |
$ 50.00 |
| 0042-3-0470 Inner |
2001 AK & 2002 AK |
8.0 x 11.0 |
$ 15.00 |
| 0042-3-0469 Outer |
|
29 x 31.5 |
$ 60.00 |
| 0042-2-0184 Inner |
35-C, 35-CA, 35-CAC |
|
$ 15.00 |
| 0042-2-0310 Outer |
|
|
$ 35.00 |
| 0042-2-0166 Inner |
65-C, 65-CA, 65-CAC |
6.25 x 8.25 |
$ 15.00 |
| 0042-3-0187 Outer |
|
20.5 x 22.25 |
$ 45.00 |
| 0042-3-0241 Inner |
120-C, 120-CA, 120-CAC |
|
$ 15.00 |
| 0042-2-0242 Outer |
|
|
$ 50.00 |
| 0042-3-0336 Inner |
|
8.62 x 10.87 |
$ 15.00 |
| 0042-2-0337 Outer |
|
29 x 31.5 |
$ 60.00 |

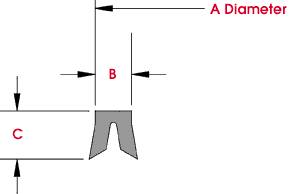

u-packing
Please provide dimensions shown and/or OEM Part Number

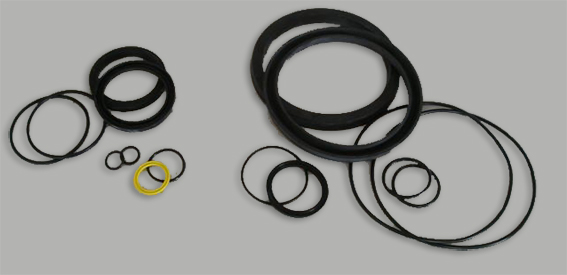

BLISS Air Counterbalance Seals
Seals available for Bliss C-22 thru C-200 presses. Cylinder diameters include 2", 2-1/2", 3", 4", 5", 6", 8" and 10". Sets include Piston Seals, Rod Seals and Rod Gland Seals.

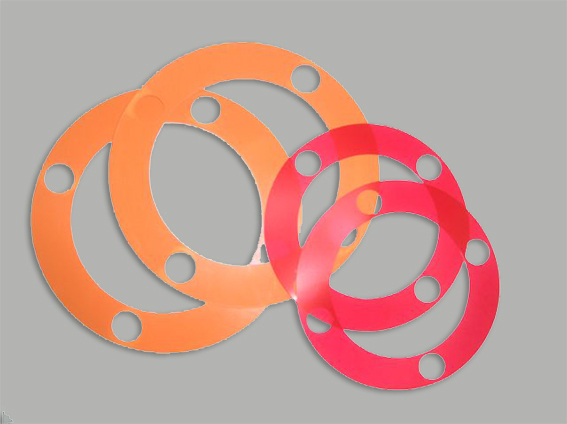

Bliss Ball Cap Shims
Ball Cap Shim sets for Bliss C-22, C-35, C-45, C-60, C-75, C-110 presses. Each set contains (3) .002", (1) .010", (1) .015", (1) .030" thick shims.
